Evaluation Board | FAN53730EVB

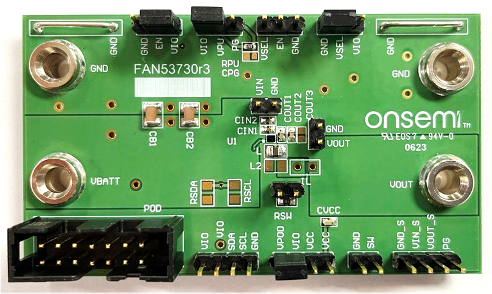

The FAN53730 evaluation board is a compact circuit including onsemi’s FAN53730, 3 A Constant On Time (COT) buck regulator in a 12-bump Wafer-Level Chip-Scale Package (WLCSP). The device’s constant on time topology provides the fastest transient recovery and optimal efficiency vs load due to its variable frequency operation.

The evaluation board provides probe access points to all key circuit nodes so that electrical characteristics can be measured.

Note: This evaluation board should be used with PICPODEVK evaluation kit for I2C communication.
